Grouping Revisions by Release

ArchiCAD 12 Revision Manager allows you to group revisions by Release.

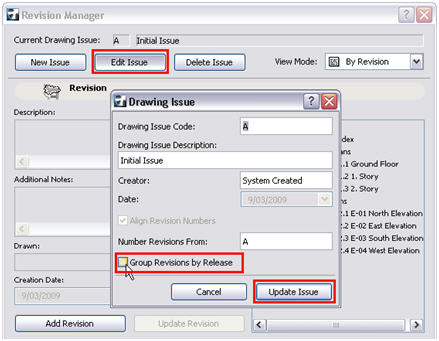

• Open the Revision Manager Dialog with the Cadimage – Revision Manager – Revision Manager… menu and click on the Edit Issue Button.
• Check the Group Revisions by Release check box.
• Then close the Drawing Issue Dialog by clicking the Update Issue Button

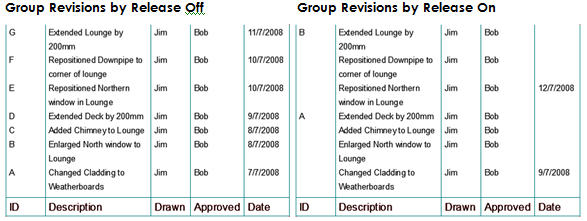

Here’s an example:

Four revisions have been done to this layout before it is transmitted.  Then another three revisions are done before it is transmitted again.

With Group Revisions switched off all of the revisions are listed independently.  But with grouping on, the first 4 revisions are all included as A which is transmitted, then the next 3 are grouped as B.

This way each transmittal of this sheet gets a separate Revision ID.
