Exporting Key Notes from Excel

When you try to export key notes (or attach GUIDs to notes), the Visual Basic macro goes to each worksheet and selects the contents. If there is a blank row of cells (with no data in any of the columns) the selection will stop at that row. The result will be that only some of the key notes will be exported.

To ensure that all of the notes are exported, remove all blank rows from the worksheets.

Tags: excel, keynotes

Using Breaklines

The RD – Breakline object is a symbol to show a break in construction for a detail drawing. While it is simple enough to use, there are some useful techniques that you may not be aware of.

When you place the break line, you should use the ‘rotate and stretch’ geometry method as indicated on the object’s Custom Settings dialog. This allows you to place, orient and stretch the symbol into place in one shot. Click in the info box to select this option before you place the break symbol.

The break line includes a solid, white ‘masking’ fill. This is designed to screen out all lines and fills that it covers.

By default the masking fill is placed to the left of or above the break line, but you move the dynamic hotspot to pull it to the opposite side or to extend the area of fill.

Of course, you will need to bring the display order of the break line to the front, or it may not mask out some elements.

Tags: breakline, rapid details

Key Note Favourites

Key Note Favourites allow you to switch between different Note appearances without changing the note content.  The Font Settings, Pens and what information is shown (Category, Key, Short Description, Long Description and /or Specification Reference)

Saving a Key Note Favourite is Easy:

• Activate the Key Note Favourites Palette with the Cadimage > Key Notes > Key Note Favourites Palette Menu
• Set up your placed Key Note Label with the settings you want to store
• Select the Key Note Label and click the Save Label button on the palette
• Enter a title for the Favourite and click Save Style.




Using a Key Note Favourite is even Easier:

• Select any Key Note Labels that you want to change the appearance of
• Double Click on the Key Note Favourite to apply it

Merging WallBuilder across storeys

When you have claddings that need to merge across Storys (for example, weatherboards) you can use the

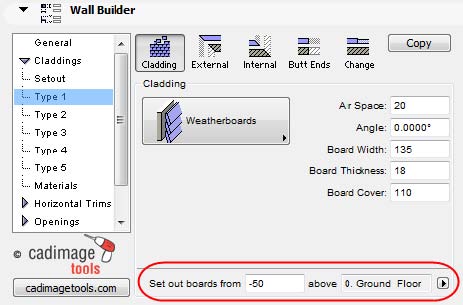

Set out boards from settings in the Claddings Tab to define where the cladding is set out from. This
ensures the boards are continuous across Stories and also remain the correct size and spacing.

You also need to set the Contours to Best within the 3D Window Settings; this ensures there is no line between the two objects.

Tags: accessories, WallBuilder
