Revision Manager v13 Released!
Posted by Josh on October 12th, 2009 filed in ArchiCAD 13, Development, Revision Manager, WebsiteWe are very pleased to announce the immediate availability of the Revision Manager Tool for ArchiCAD 13! You can download it right now from the downloads section on our website. Documentation Suite owners, this means you too.
Remember to check our fancy new Online Help System where you can read the Release Report for this version, and of course, get access to the full set of documentation for the Revision Manager.
And finally, today being the 12th means that there’s just 1 day left to get 13% off the upgrade to version 13, so be in quick! Click here to go directly to the upgrade page, or login and go to My Account -> Upgrade My Products.
No Comments »
Grouping Revisions by Release
Posted by Glen on March 9th, 2009 filed in ArchiCAD 12, Revision Manager, Tip of the WeekArchiCAD 12 Revision Manager allows you to group revisions by Release.

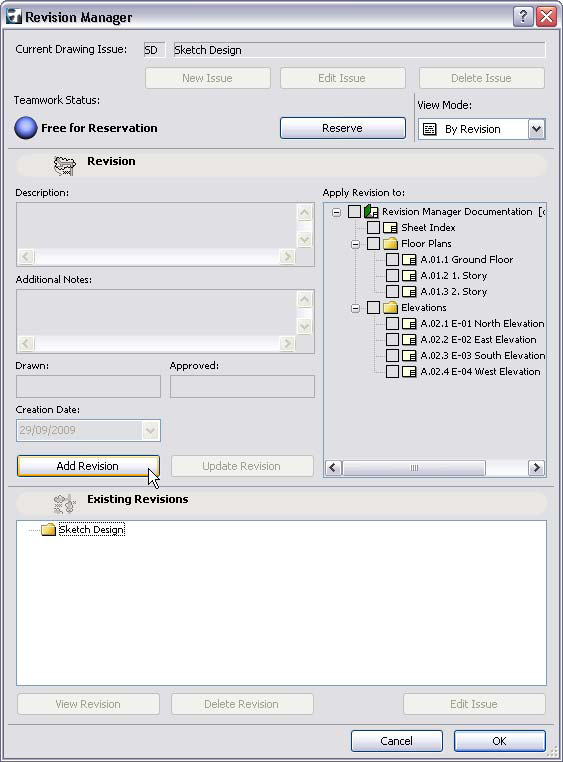

- Open the Revision Manager Dialog with the Cadimage – Revision Manager – Revision Manager… menu and click on the Edit Issue Button.
- Check the Group Revisions by Release check box.
- Then close the Drawing Issue Dialog by clicking the Update Issue Button
Here’s an example:
Four revisions have been done to this layout before it is transmitted. Then another three revisions are done before it is transmitted again.
With Group Revisions switched off all of the revisions are listed independently. But with grouping on, the first 4 revisions are all included as A which is transmitted, then the next 3 are grouped as B.
This way each transmittal of this sheet gets a separate Revision ID.
2 Comments »
Custom Revision Clouds
Posted by Josh on March 2nd, 2009 filed in ArchiCAD 11, ArchiCAD 12, Revision Manager, Tip of the WeekWhen you change the cloud shape to a custom cloud, you get a bunch of adjustable hotspots. The number and position of the hotspots depends on the original shape of the cloud.
If you started with a rectangular cloud, you’ll get 4 editable edges.
If you started with an L-shape cloud, you’ll get 6 editable edges.
The exception to the rule is the elliptical cloud shape. If you choose an elliptical cloud, then change directly to a custom cloud shape, a large number of editable edges is generated.
Normally this number will be more than you need, so first change the cloud to a rectangular shape. Then when you change the cloud to a custom shape it will have only 4 editable edges.
