Exporting Key Notes from Excel

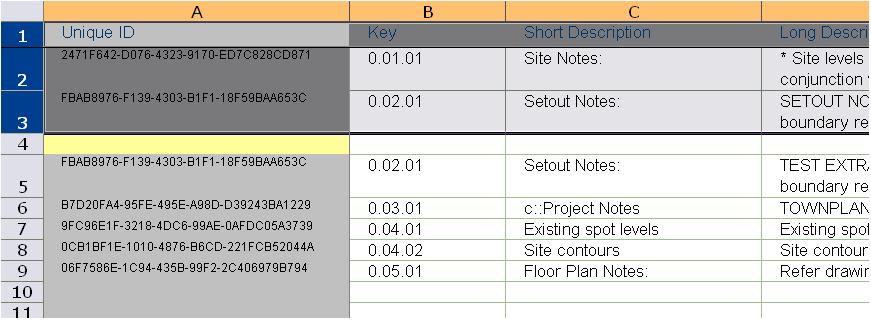

When you try to export key notes (or attach GUIDs to notes), the Visual Basic macro goes to each worksheet and selects the contents. If there is a blank row of cells (with no data in any of the columns) the selection will stop at that row. The result will be that only some of the key notes will be exported.

To ensure that all of the notes are exported, remove all blank rows from the worksheets.

Tags: excel, keynotes

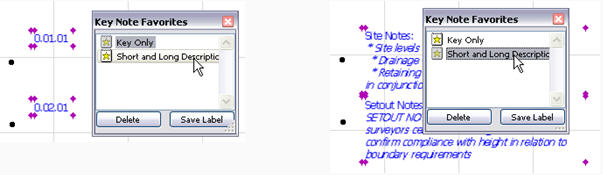

Key Note Favourites

Key Note Favourites allow you to switch between different Note appearances without changing the note content.  The Font Settings, Pens and what information is shown (Category, Key, Short Description, Long Description and /or Specification Reference)

Saving a Key Note Favourite is Easy:

• Activate the Key Note Favourites Palette with the Cadimage > Key Notes > Key Note Favourites Palette Menu
• Set up your placed Key Note Label with the settings you want to store
• Select the Key Note Label and click the Save Label button on the palette
• Enter a title for the Favourite and click Save Style.




Using a Key Note Favourite is even Easier:

• Select any Key Note Labels that you want to change the appearance of
• Double Click on the Key Note Favourite to apply it

Placing Element Key Note Labels via the Palette

Open the Key Notes Palette with the Cadimage – Key Notes – Key Note Palette menu.

To attach notes to elements

Select the elements then:

1.                  Make sure you have it set to element labels.

2.                  Make sure the key note palette is on Full Notes

3.                  Double click on the notes to add them to the selected elements

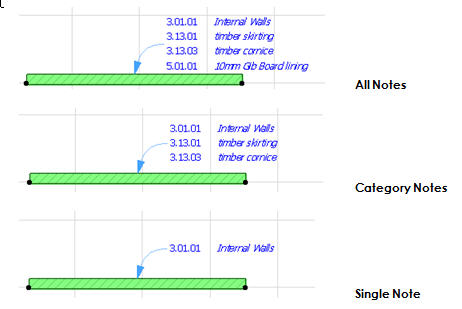

To attach labels to the elements

Select a single element then:

• Switch to the Elements Tab of the Palette (The notes attached to the selected element will be displayed)
• Select the All folder to attach a single label with all of the notes

or   Select a Category folder to create a label of the Category Notes

or   Select an individual Note to create a single Note label

• Click the Deselect Button
• Draw a label pointing to the element

(The element will then be selected again to confirm that the label has been linked to it).

Tags: element labels, Key Notes, keynotes, labels

Cadimage Tools Hotfix 3

We are pleased to announce the release of the Third hotfix for the Cadimage Tools for ArchiCAD 12. This update brings a number of fixes as well as the introduction of Steel Framing into the Wall Framing Tool. We have also updated the installer to support English, German, Spanish, French, Russian and Norwegian localised versions of ArchiCAD. Get the latest versions here:

http://www.cadimagetools.com/myAccount/downloads.aspx

And make sure to read the release reports to find more details on what has been done.

Tags: Hotfix

Deutsche Cadimage Tools herausgegeben!

Cadimage Tools ist stolz bekanntzugeben, dass von heute an fünf der Cadimage Tools als örtliche deutschsprachige Versionen verfügbar sind.

Die folgenden ArchiCAD 12 Tools sind heute herausgegeben und sind ab sofort zum Kauf und Download erhältlich:

• 3D Profiler
• Key Notes
• Landscaping Tool
• Revision Manager
• Stair Builder

In Verbindung mit der Veröffentlichung, wurde die Cadimage Tools Webseite komplett überholt und ist nun auch als örtliche Webseite auf Deutsch vorhanden.

Das Übersetzen, Entwickeln und Instandhalten der Tools in mehrfachen Sprachen stellt das Entwicklerteam vor zusätzliche Herausforderungen. Wir sind jedoch der Auffassung, dass die Vorteile regionaler Versionen diese internen Herausforderungen bei weitem überwiegen.

Zu diesem Zeitpunkt wird unser Online Support noch auf Englisch angeboten. Wir werden allerdings die Nachfrage unserer deutschsprachigen Kunden beobachten und ständig unser Hilfsangebot überprüfen.

Wir werden mit ortsansässigen Graphisoft Partnern in Deutschland, Österreich und der Schweiz zusammenarbeiten, um diesen grossartigen Anlass zu fördern.

German Cadimage Tools Released!

Cadimage Tools is proud to announce that from today five of the Cadimage Tools are available as localised German language versions.

The following ArchiCAD 12 Tools have all been released today available for immediate purchase and download:

• 3D Profiler
• Key Notes
• Landscaping Tool
• Revision Manager
• Stair Builder

In conjunction with this release, the Cadimage Tools website has been completely overhauled and is also available as a localised website in German.

Translating, developing and maintaining Tools in multiple languages provides additional challenges to the development team but we believe the benefits of having local versions far outweigh these internal challenges.

At this stage our Online Support is still provided in English, however, we will monitor the demand from our German speaking customers and continually review our support offering.

We will be working with local Graphisoft Partners in Germany, Austria and Switzerland to promote this great occasion.
