Day 6 – Landscaping

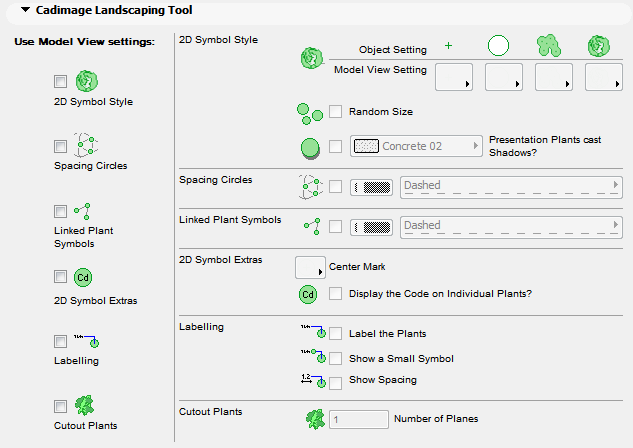

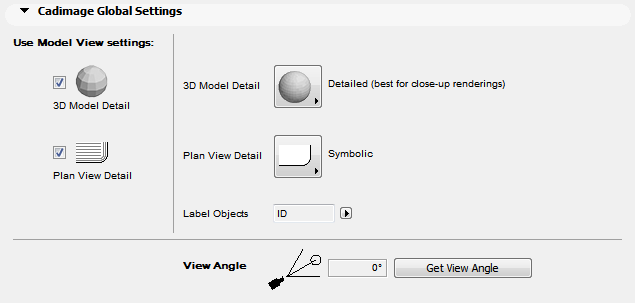

Posted by Josh on September 7th, 2009 filed in ArchiCAD 13, Landscaping ToolsThe Landscaping Tool now has an array of possibilities in the Model View Options, including setting display styles, linetype and labelling options. You can also now store the View Angle of your objects in the Model View Options!
No Comments »
Linking Plants in the Landscaping Tool
Posted by Jack on March 23rd, 2009 filed in ArchiCAD 11, ArchiCAD 12, Landscaping Tools, Tip of the WeekWhen placing plants using the Landscaping Tool, each plant has its own label. After placing a number of single plants, the plan can start look untidy. You can use Cadimage -> Landscaping Tool - > Link Plant to link single plants together.
The plants will then be grouped together and the total number of chains will be displayed in the label. Only groups of identical plants will be grouped.
No Comments »
Creating Plant Cutouts
Posted by Andrew on March 16th, 2009 filed in ArchiCAD 11, ArchiCAD 12, Landscaping Tools, Tip of the WeekThe first step in creating a cutout plant is to place the image onto the floor plan. Use the Figure tool to do this. Make sure that the image you use is in a currently loaded library.
Place the image onto the floor plan.
Draw a line around the image to provide a reference edge, and lock the layers.
The next step is to use a fill polygon to trace around the plant image. Use a 25 % fill with a transparent background pen, so that you can see the image at all times.
Its no good placing either too few or too many vertices around the plant. Ideally you should use around 200 – 300 vertices. This will ensure that the plant 3D model generates quickly, while the outline clearly represents the plant.
To ensure that you include no more than 3oo vertices, use a system.
1. First place vertices at 30 key points on the plant’s outline. Keep the points evenly spaced if possible. Points may be spaced more closely in areas of intense detail or further apart in areas of less outline detail (eg. a smooth, straight trunk of a tree).
Ensure that at least one vertex is touching each edge of the image (left, right, bottom, top) and that no vertices extend beyond the image.
2. Now zoom in to view each pair of adjacent vertices in turn. Between each pair of vertices, add 5 to 10 vertices as required to allow for the extra detail.
It should take no more than 30 minutes to trace a fill polygon around a plant.
No Comments »
